BTI engineers and manufactures a complete line of machine tools for all part types and sizes, as well as all production rates and levels of automation.

Balance Technology designs and builds purpose-built machines: machines that remove metal from a specific part, in a specific place, for a specific reason, usually because a measurement told them to. Manual, fully automated, or somewhere in between.

These are not general-purpose machining centers, and we do not compete with them. A machining center is built to do many things to many parts. A purpose-built machine tool is built to do one thing to one family of parts, faster, in less floor space, and with the measurement that governs the cut built into the same machine.

Machining That Answers to a Measurement

Most of the machine tools we build exist because a measurement has to be turned into a cut.

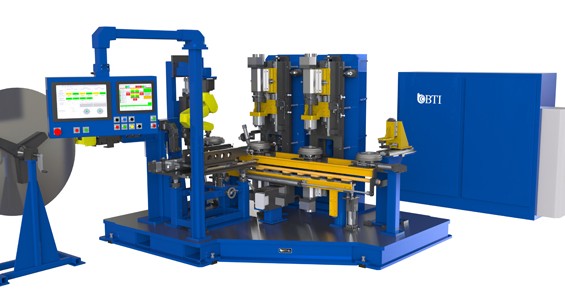

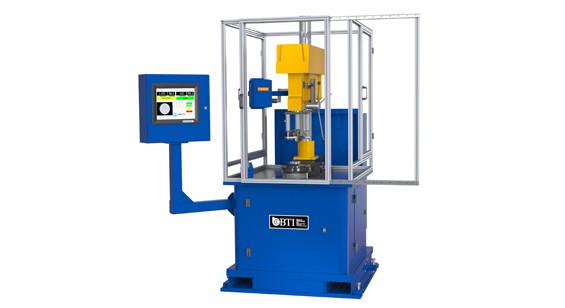

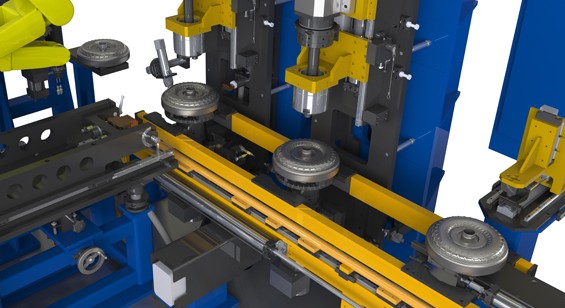

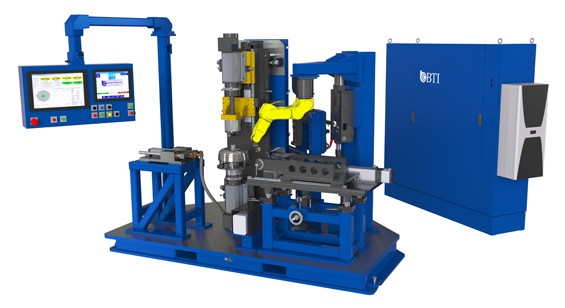

Balance correction machining. The balancer determines how much material to remove and where, and a correction station removes it by drilling, milling, grinding, punching or turning in the same machine, on the same fixture, followed by a verification spin. The cut is only as good as the axis it is referenced to, which is why correction is a machine tool problem and a measurement problem at the same time.

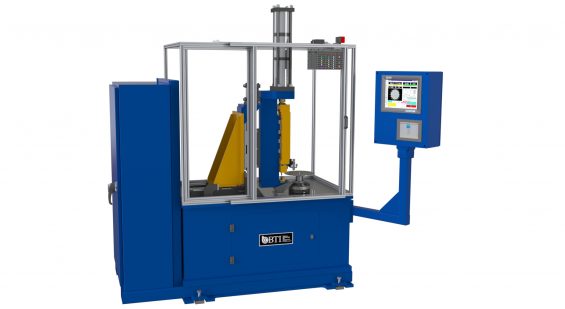

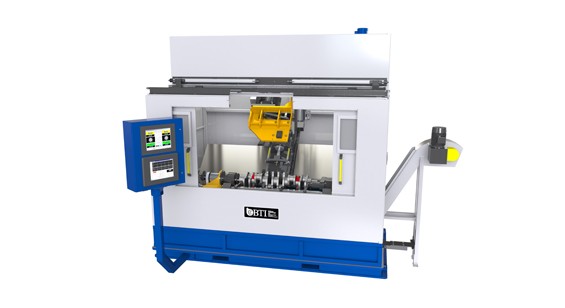

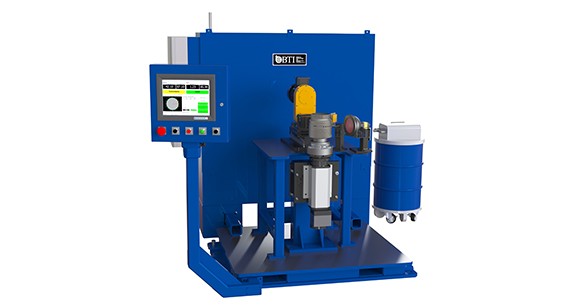

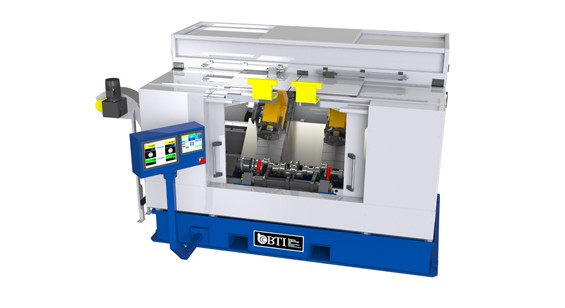

Mass centering. A forging is measured to find its true mass axis, then center drilled on that axis rather than on its nominal geometric one. Every subsequent machining operation then starts from the axis the part will actually spin about. On crankshafts in particular, this keeps counterweight machining inside its envelope and drastically reduces the correction the balancer has to make later.

Corrective machining after gaging. A gage measures the part and a machining station takes it to size, with the measurement closing the loop rather than a fixed program running open loop.

Straightening and runout correction. Measure, calculate, correct, verify: the same closed loop, executed by a press or peening head rather than a cutter. See shaft straighteners.

Special Purpose Machines

We also build machine tools that are simply dedicated rather than measurement-driven: an operation your part needs that no catalog machine does well, at a rate a general-purpose machine cannot reach.

  • Dedicated drilling, milling, boring and tapping stations
  • Center drilling machines
  • Facing, chamfering and deburring machines
  • Grinding and honing stations
  • Broaching and keyway operations
  • Slotting, notching and punching
  • Multi-spindle stations where several features are cut simultaneously

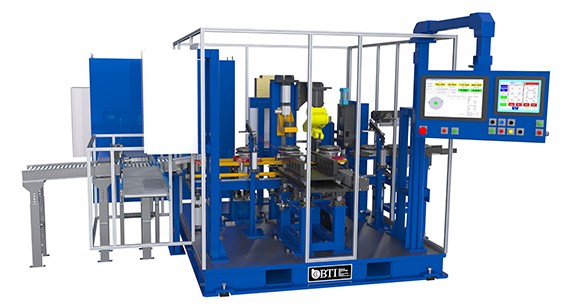

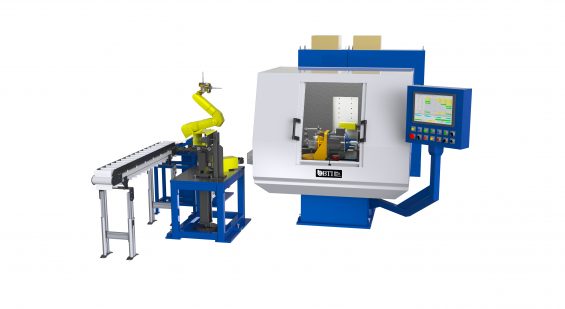

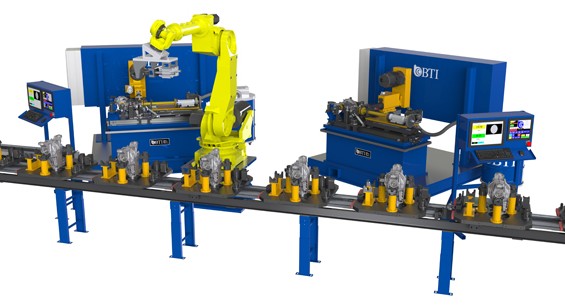

  • Machining stations integrated into automated assembly lines

Why a Purpose-Built Machine Instead of a Machining Center

Cycle time. A dedicated machine performs its operation without tool changes, without repositioning and without the generality that costs a machining center seconds on every cycle. On a high-volume part, seconds decide whether you need one machine or three.

Floor space and capital per part. One dedicated station doing one operation at rate is smaller and cheaper than a machining center doing the same work slower.

Integration with measurement. This is the real argument. When the machining is governed by a measurement, the measurement and the cut want to share a fixture, a datum scheme and a control system. Bolting a gage onto a machining center is a compromise; designing the two together is not.

The operator. A dedicated machine has a dedicated interface. Load, cycle, unload. The training burden is a fraction of a programmable machining center’s, which matters in plants where the workforce turns over.

Where a Machining Center Is the Better Answer

If your part mix is varied, your volumes are moderate, and the machining is not tied to an in-process measurement, buy a machining center. It will be cheaper, more flexible, and supportable by people other than us. We would rather tell you that at the start than build you a machine you will outgrow or underuse.

Purpose-built wins on stable, high-volume families, on tight cycle times, and above all where the cut is determined by a measurement made in the same machine.

How We Build Them

The fixture first. As with everything we build, the datum scheme comes before the station layout. A cut referenced to the wrong axis is wrong no matter how precisely it was executed, and on measurement-driven machining the fixture is what makes the measurement and the cut agree. Where the part drawing uses geometric dimensioning and tolerancing, the fixture is built to simulate the datums that drawing calls out.

Rigidity sized to the cut. Base, ways and spindle are specified for the actual cutting loads, not scaled from a similar machine.

Servo control of the axes that matter, so that correction amounts calculated by the measurement system are executed directly rather than approximated.

Chip and coolant management designed in from the start. On a combined measurement and machining machine this is not a detail. Chips and mist in a measurement station are how a good machine becomes an unreliable one.

Controls and data. One control system, one record per part, with machining parameters and measurement results in the same record.

What We Need to Quote One

  • Part drawings, with datums and the tolerances on the features to be machined
  • The operation required, and what governs it: a fixed program or a measurement
  • Material, hardness and condition
  • Part size, weight and the range across the family
  • Required throughput and takt time
  • Whether measurement and verification are required in the same machine
  • How parts arrive and leave
  • Floor space, utilities, and plant standards for controls and safety

Frequently Asked Questions

Do you build standalone machine tools, or only correction stations?

Both. Most of our machining work is part of a measurement-driven machine, but we build dedicated special purpose machines on their own where the application justifies it.

Can you add a machining station to a machine we already own?

Frequently. Adding automatic correction to a balancer that currently only measures is one of the more common upgrades we do. See BTI rebuilds and retrofits, or competitor rebuilds for machines built by others.

Which correction method should we use?

It depends on the material, the amount of correction, the surface you can remove from, and whether chips are acceptable.

  • Drilling is fast and removes a lot
  • Milling gives a controlled, cosmetically better result
  • Grinding suits hardened surfaces
  • Punching and riveting suit sheet and fabricated parts
  • Weight addition suits parts you cannot cut into

We will recommend based on your part, and we will explain the tradeoff rather than just state a conclusion.

Can measurement and machining really share one machine without the chips causing problems?

Yes, when the machine is designed for it, with separated stations, sealed measurement areas, directed coolant and chip evacuation, and cleaning before measurement where the part demands it. It is a design problem with known solutions, and it is one of the reasons a combined machine should be designed as one machine rather than assembled from two.

Can you integrate a machining station into an assembly line?

Yes. Machining operations embedded in automated assembly systems, including sizing, facing, drilling after a press operation, are common in the machines we build.

Including static and dynamic balancing equipment, dimensional gages, mass centering equipment, eddy current crack detection systems, surface finish measurement equipment, NVH equipment (noise vibration and harshness), functional test stands, spinners, motor testers, and resonant frequency measurement systems.

We also engineer and manufacture specialized test systems, including torque-to-turn, backlash, end play, and destructive test equipment.

Additionally, BTI’s unique ability to combine the aforementioned technologies into one fully integrated system enables our clients to reduce capital expenditures, increase product quality, and minimize floor space requirements. There is no need for costly conveyors and escapements to connect independent machines together; nor do you need to train operators on multiple machines. There is one seamless, easy-to-use operator interface with unprecedented networking, statistical, and diagnostic capability.

Whether you need a fully integrated, combined technology system (e.g., a balancer/gage/NVH combo) or an independent machine tool, let our team of mechanical, electrical, and software engineers design and build a configured-to-order system for you.

If you don’t see the product you are looking for, or have specific questions, please contact us.
