Refiner Plates

BTI engineers and manufactures a complete line of manual, semi-automatic, and fully automatic precision measurement and testing equipment for refiner plates

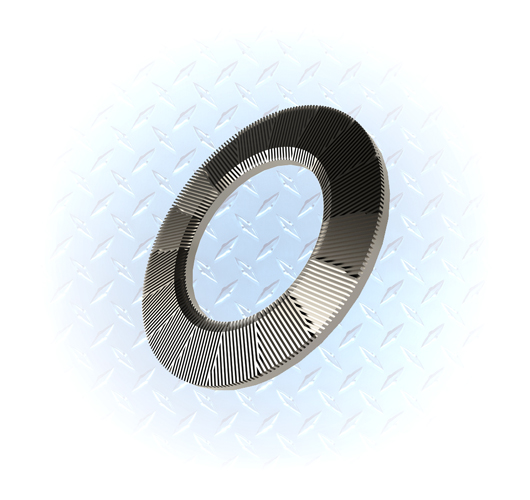

A refiner plate assembly is one of the largest and least forgiving rotors in a pulp mill. It is a segmented disc, several feet across, bolted together from hard wear-resistant castings, spinning in an abrasive slurry that consumes the very surfaces that determine its balance.

Balance Technology Inc. builds balancing and measurement equipment for refiner plates, refiner discs and rotor assemblies used in pulp and paper production.

The Balance Is Built at Assembly

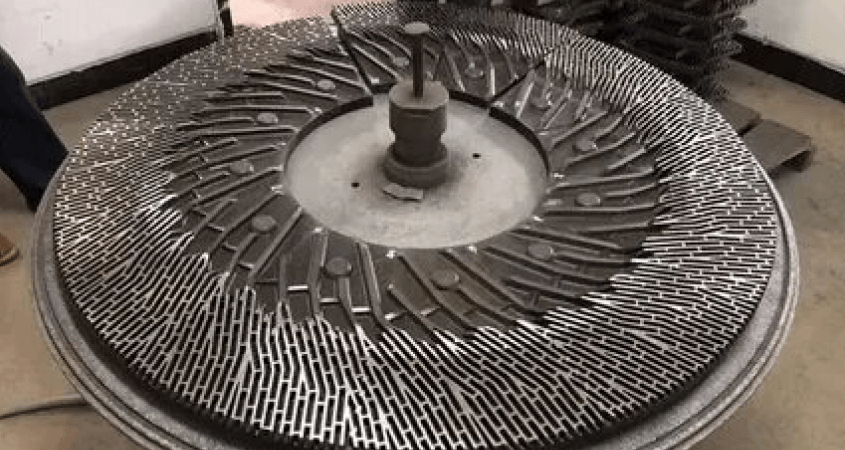

Refiner plates are segmented. Individual segments are bolted to a rotor disc, and the assembly’s balance depends on how those segments are selected and arranged, not on the machining of any one of them.

This makes it the same problem as a bladed turbine rotor. Segments vary in mass, and a set distributed by weight around the disc will leave a far smaller residual than a set installed in the order they came out of the crate. Weighing segments and placing them deliberately is the cheapest correction available, and it happens before any correction weight is considered.

It also means a single segment replaced in service, without regard to its mass relative to the one it replaced, can put a balanced assembly out of tolerance.

Wear Is the Dominant Variable

This is the application where in-service change matters most. The plate surfaces are consumed by design — they are doing the refining — and they do not wear evenly. Fiber distribution across the disc, consistency variation and local hydraulic conditions all produce uneven wear, and a plate set that started in tolerance will drift out of it over a service life.

The practical consequences are that balance is a maintenance characteristic rather than a one-time manufacturing one, that the tolerance chosen at assembly should leave margin for the degradation the duty will impose, and that plate change intervals are as much a vibration decision as a refining-quality one.

Mass and Speed Make It a Safety Question

A large-diameter assembly carrying significant mass at a large radius stores a great deal of energy. Unbalance in a rotor of that size loads bearings and the machine structure heavily, and the failure modes are not gentle. Guarding, containment and vibration monitoring on the installed machine are engineering requirements rather than precautions.

The same mass makes handling and fixturing on a balancing machine a designed operation. A rotor of this size needs support that reproduces its service condition and tooling built to carry it safely.

Correction

Segment redistribution is the first and best correction. Beyond that, correction is normally made at the rotor disc rather than the plate segments — the segments are hard, wear-critical and replaceable, and material should not come off a working surface.

Where correction weights are used they have to survive the environment: a weight that corrodes loose in a wet, abrasive, chemically active duty is a hazard in a machine this size.

Setting the Tolerance

Tolerances follow ISO 21940-11 from a balance quality grade, the assembly mass and the service speed. Large, relatively slow rotors produce a comparatively generous permissible unbalance in absolute terms, which is fortunate given the wear behavior — but the large mass means the residual force at the bearings is still substantial. BTI publishes a free ISO 21940-11 balance tolerance calculator with the method behind it — grade selection, the permissible unbalance formula, plane allocation, and a worked example.

What Else Gets Measured

Refiner work commonly combines balancing with segment weighing and mapping, dimensional gauging of plate and rotor features, flatness and runout measurement, crack detection on castings, and vibration monitoring on the installed machine.

Equipment Configurations

Layouts range from single manual stations sized for large rotors through to instrumented cells with segment weighing and data collection, and vary to accommodate any production rate. For platform selection across the full range, see BTI balancing machines.

Related applications include pumps, fans, impellers and blowers and pulp and paper.
